Trice Logging Output

With trice log -port COM12 you can visualize the trices on the PC, if for example COM12 is receiving the data from the embedded device at the 115200 default baudrate.

The following capture output comes from an (old) example project inside ../examples.

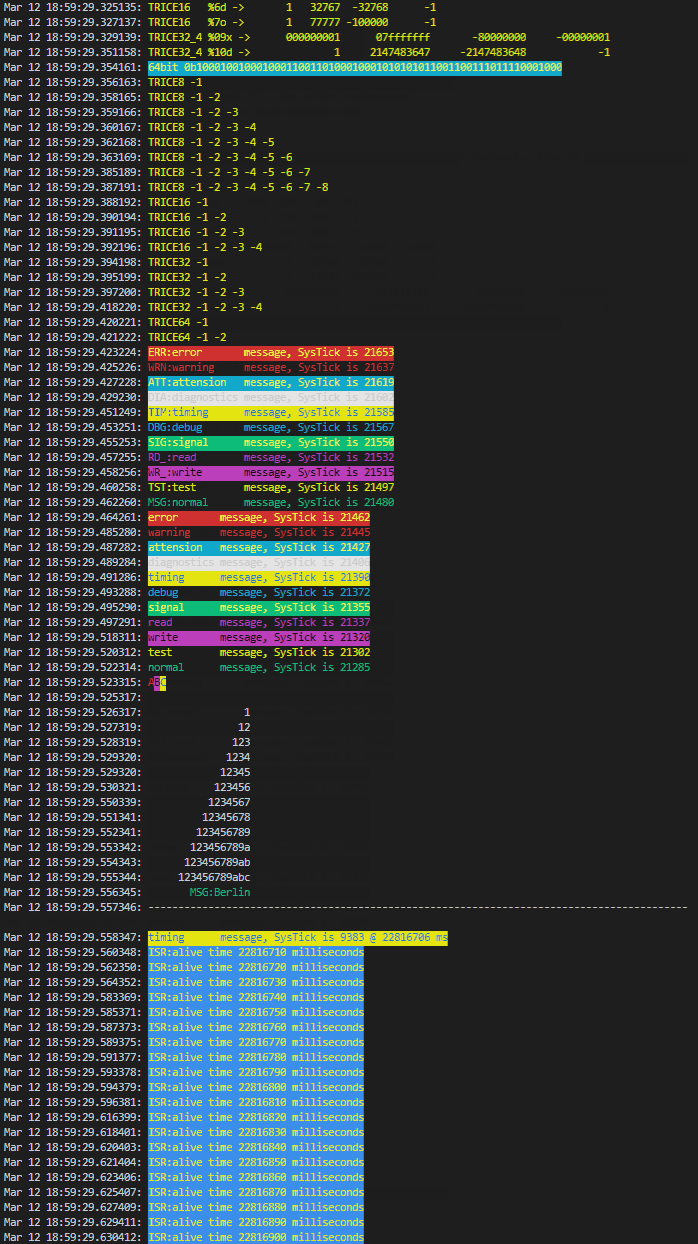

Colored Trice log output with timestamps

Select the preview to open the full animation.

See ../_test/testdata/triceCheck.c for reference. The Trices can come mixed from inside interrupts (light blue ISR:...) or from normal code. For usage with a RTOS, Trices are protected against breaks (TRICE_ENTER_CRITICAL_SECTION, TRICE_LEAVE_CRITICAL_SECTION). Regard the differences in the read SysTick values inside the linked animation. These differences are the MCU clocks needed for one trice (~0,25µs@48MHz).

Use the -color off switch for piping output in a file. More convenient is the -lf auto switch.
