Development Environment Setup

Contents

1. Common Information

2. Important to know

The ARM-Keil ”Vision IDE does sometimes not recognize external file modifications. That means for example: After editing main.c by adding a trice( "Hi!\n" ) and executing trice insert as pre-compile step it could happen, that an updated trice( iD(12345), "Hi!\n" ) was inserted and correct compiled but the update in main.c is not shown. Simply close and reopen main.c before editing again. This seems to be a ARM-Keil ”Vision IDE “feature” or be caused Windows not signaling a file change.

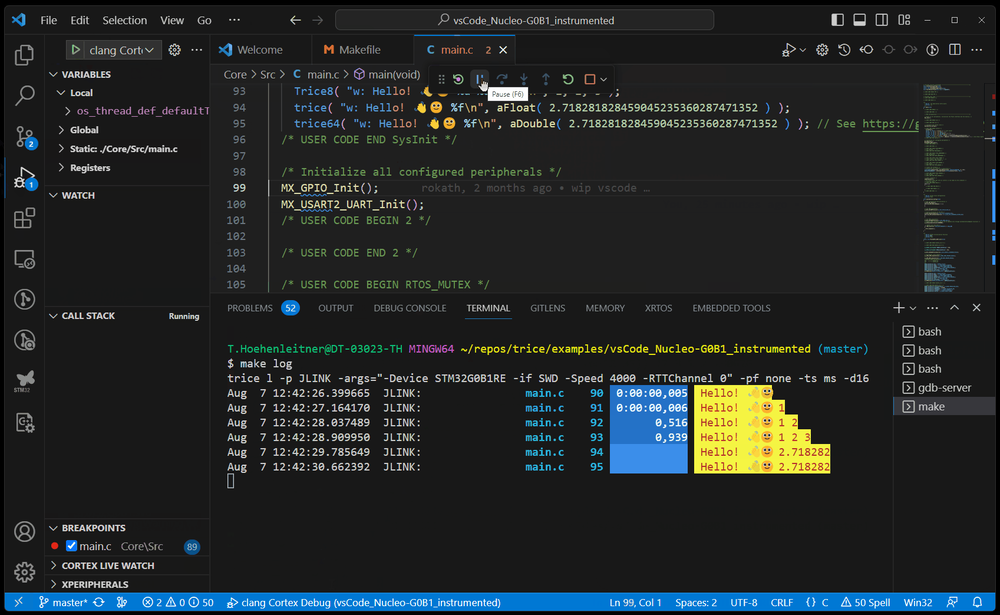

3. Animation

(The trice IDs occur just during the compilation.)

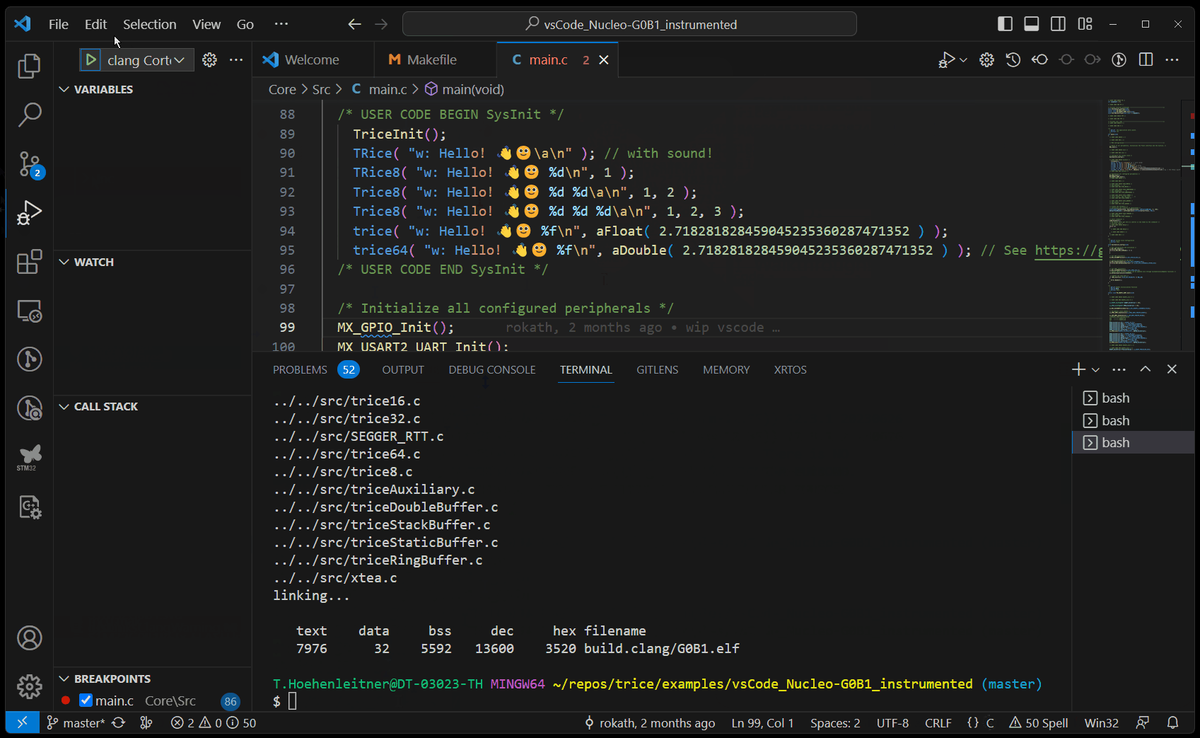

Trice source and completed example build

Select the preview to open the full animation.

4. Setup Linux PC - Example with Debian12 - KDE Desktop

4.1. Basic setup

su
apt install sudo
adduser <your_user_name> sudo
exit

groups
sudo apt update
sudo apt upgrade
sudo apt install build-essential
make --version
gcc --version
git --version
git config --global user.email "you@example.com"
git config --global user.name "Your Name"

4.2. GitHub

4.3. VS Code

Open the repository root to use the shared Go launch configurations. Install the Go extension and its debugger tools first. The configurations use ${workspaceFolder} rather than a particular checkout location. UART and TCP entries ask for the serial port or RTT endpoint at launch; these are VS Code input variables.

The G0B1 and L432 hardware entries use the root demoTIL.json and demoLI.json, which belong to those instrumented examples. Build and flash the corresponding example before connecting. The G0B1 UART entry matches its encrypted COBS output at 115200 baud with password MySecret; the RTT entries match unframed direct output with doubled IDs. TCP4 expects that same G0B1 RTT stream forwarded by a server, normally at localhost:17001. These settings do not apply to arbitrary firmware or captures: use the ID/location tables and framing from that firmware.

The generate entry creates generated/til.c from the current G0B1 main source; run the example’s bind/build step first so that its sidecars and ID table agree. The insert/clean entries operate on that main source and update the root tables; they are maintenance commands, not log viewers. Already bound code follows the normal insert/clean ownership rules. After a fresh checkout, run the repository’s Bind workflow to initialize the locally generated demoLI.json before using these maintenance entries, or create the missing file with touch demoLI.json from the repository root. Retain an existing LI for ID ownership evidence. The test entry runs one existing bind test. For a hardware-free decoder session, select trice l -p DUMP: its retained capture uses testTIL.json/testLI.json and includes a missing cycle-counter value 194, so one cycle-error diagnostic is expected. Entries whose captures, source folders or command variants no longer exist have been removed.

When opening a G0B1 example itself, its C/C++ configuration finds arm-none-eabi-gcc through PATH. Start VS Code from an environment containing the installed ARM compiler and install the C/C++ and Makefile Tools extensions. Only USE_HAL_DRIVER and STM32G0B1xx are supplied as project defines; builtin defines are queried from the compiler with -mcpu=cortex-m0plus rather than copied from an older version or inferred for the compiler’s default CPU. IntelliSense uses gcc-arm instead of the host platform’s default architecture.

The shared JetBrains settings retain the CLion CMake review host, project inspections and XML spelling dictionary. Choose the host toolchain locally; workspace layout and personal state are ignored. IDE launch, serial/RTT connections and indexing still need checking in your installed IDE and hardware environment; parsing the templates alone cannot establish those results.

4.4. Go

4.5. Gitkraken (or other GUI for git)

4.6. arm-none-eabi toolchain (or other target system compiler)

sudo apt install gcc-arm-none-eabi
sudo apt install binutils-arm-none-eabi
sudo apt install gdb-arm-none-eabi
sudo apt install openocd
arm-none-eabi-gcc --version
arm-none-eabi-gcc (15:12.2.rel1-1) 12.2.1 20221205
Copyright (C) 2022 Free Software Foundation, Inc.
This is free software; see the source for copying conditions.  There is NO
warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

  ls -l /usr/bin/ | grep arm-none-eabi
  -rwxr-xr-x 1 root root     1033504 Feb 28  2023 arm-none-eabi-addr2line
  -rwxr-xr-x 2 root root     1066088 Feb 28  2023 arm-none-eabi-ar
  -rwxr-xr-x 2 root root     2095024 Feb 28  2023 arm-none-eabi-as
  -rwxr-xr-x 2 root root     1514496 Dec 22  2022 arm-none-eabi-c++
  -rwxr-xr-x 1 root root     1032992 Feb 28  2023 arm-none-eabi-c++filt
  -rwxr-xr-x 1 root root     1514496 Dec 22  2022 arm-none-eabi-cpp
  -rwxr-xr-x 1 root root       43640 Feb 28  2023 arm-none-eabi-elfedit
  -rwxr-xr-x 2 root root     1514496 Dec 22  2022 arm-none-eabi-g++
  -rwxr-xr-x 2 root root     1514496 Dec 22  2022 arm-none-eabi-gcc
  -rwxr-xr-x 2 root root     1514496 Dec 22  2022 arm-none-eabi-gcc-12.2.1
  -rwxr-xr-x 1 root root       35376 Dec 22  2022 arm-none-eabi-gcc-ar
  -rwxr-xr-x 1 root root       35376 Dec 22  2022 arm-none-eabi-gcc-nm
  -rwxr-xr-x 1 root root       35376 Dec 22  2022 arm-none-eabi-gcc-ranlib
  -rwxr-xr-x 1 root root      749664 Dec 22  2022 arm-none-eabi-gcov
  -rwxr-xr-x 1 root root      585688 Dec 22  2022 arm-none-eabi-gcov-dump
  -rwxr-xr-x 1 root root      610328 Dec 22  2022 arm-none-eabi-gcov-tool
  -rwxr-xr-x 1 root root     1104256 Feb 28  2023 arm-none-eabi-gprof
  -rwxr-xr-x 4 root root     1709968 Feb 28  2023 arm-none-eabi-ld
  -rwxr-xr-x 4 root root     1709968 Feb 28  2023 arm-none-eabi-ld.bfd
  -rwxr-xr-x 1 root root    24982344 Dec 22  2022 arm-none-eabi-lto-dump
  -rwxr-xr-x 2 root root     1054720 Feb 28  2023 arm-none-eabi-nm
  -rwxr-xr-x 2 root root     1180744 Feb 28  2023 arm-none-eabi-objcopy
  -rwxr-xr-x 2 root root     1867744 Feb 28  2023 arm-none-eabi-objdump
  -rwxr-xr-x 2 root root     1066120 Feb 28  2023 arm-none-eabi-ranlib
  -rwxr-xr-x 2 root root      973400 Feb 28  2023 arm-none-eabi-readelf
  -rwxr-xr-x 1 root root     1033280 Feb 28  2023 arm-none-eabi-size
  -rwxr-xr-x 1 root root     1037504 Feb 28  2023 arm-none-eabi-strings
  -rwxr-xr-x 2 root root     1180744 Feb 28  2023 arm-none-eabi-strip

For the Trice bare-metal examples, use a complete, internally consistent toolchain containing GCC, GNU Binutils, Newlib, and Newlib-Nano. The official Arm GNU Toolchain installation guide covers matching packages for Linux, macOS, and Windows. Select the package for the host platform whose target name ends in arm-none-eabi, and verify its accompanying SHA-256 file before installing it.

Arm GNU Toolchain 15.3.Rel1 is the currently tested version for the Trice GCC example builds. It reports:

arm-none-eabi-gcc (Arm GNU Toolchain 15.3.Rel1 (Build arm-15.149)) 15.3.1 20260627
GNU assembler (Arm GNU Toolchain 15.3.Rel1 (Build arm-15.149)) 2.45.1.20260126

Install new releases side by side instead of replacing a working toolchain immediately. Prepend the selected installation’s bin directory to PATH for the current shell or configure it permanently using the host operating system’s normal environment-variable settings. On Linux and macOS, an unpacked archive can be selected temporarily as follows:

toolchain_dir="$HOME/opt/arm-gnu-toolchain-15.3.rel1"
export PATH="$toolchain_dir/bin:$PATH"

On Windows, keep versioned installations side by side and prepend the selected bin directory for the current terminal. See Inventory, select, and remove compiler versions. Make the selection persistent only after it passes the tests. Do not combine GCC, as, libraries, or specifications from different toolchain installations.

Check which installation is active and whether the required runtime files are present:

command -v arm-none-eabi-gcc
command -v arm-none-eabi-as
arm-none-eabi-gcc --version
arm-none-eabi-as --version
arm-none-eabi-gcc -print-file-name=nano.specs
arm-none-eabi-gcc -print-file-name=libnosys.a

Use where.exe instead of command -v in a Windows command prompt. The last two commands must print resolved paths. Output containing only nano.specs or libnosys.a means that the active installation is incomplete.

On macOS, brew install --cask gcc-arm-embedded installs an official complete Arm package, but the cask can lag behind the newest Arm release. In contrast, the Homebrew formula installed by brew install arm-none-eabi-gcc builds GCC with --without-headers and installs GCC plus libgcc, but not Newlib/Newlib-Nano. A newer GCC version number from that formula therefore does not make it a complete replacement for the official package used by these examples.

4.6.2. GNU assembler unable to rebuffer file warning

The G0B1 build requests assembler listings with -Wa,-a,.... While generating such a listing, GNU as reopens and rereads source text associated with the temporary compiler-generated assembly file. A diagnostic such as

ccXXXX.s: Warning: unable to rebuffer file: path/to/source.c

means that this second source-file read returned fewer bytes than expected. It is an assembler-listing diagnostic, not a C-language warning. The object and executable may still have been generated correctly, but the Trice full test intentionally treats every warning as a failure.

The warning was observed once with Arm GNU Toolchain 15.2.Rel1 on macOS and did not recur when the identical G0B1 build was repeated. The complete test with 15.3.Rel1, including the G0B1 X0 matrix and listing generation, completed without warnings. This establishes the warning as intermittent; it does not prove that 15.3.Rel1 contains a specific fix for it.

If the warning occurs:

  1. Keep listing generation and strict warning checks enabled.
  2. Confirm the active GCC and assembler paths and versions with the commands above.
  3. Ensure that no editor, generator, formatter, synchronization tool, or parallel build step rewrites the named source file while as is running.
  4. Repeat the affected build once with the complete 15.3.Rel1 package.
  5. If it is reproducible, retain the complete compiler command, tool versions, source file, and generated listing and report the case as a GNU Binutils or Arm GNU Toolchain issue.
sudo apt install ~/Downloads/JLink_Linux_V812_x86_64.deb

th@P51-DebianKDE:~/Downloads$ JLinkRTTLogger -?
SEGGER J-Link RTT Logger
Compiled Dec 18 2024 15:48:21
(c) 2016-2017 SEGGER Microcontroller GmbH, www.segger.com
         Solutions for real time microcontroller applications

Default logfile path: /home/th/.config/SEGGER

------------------------------------------------------------

Available options:
-Device <devicename>
-If <ifname>
-Speed <speed>
-USB <SN>
-IP <SN>
-RTTAddress <RTTAddress>
-RTTSearchRanges "<Rangestart> <RangeSize>[, <Range1Start> <Range1Size>, ...]
"-RTTChannel <RTTChannel>
-JLinkScriptFile <PathToScript>
<OutFilename>

Shutting down... Done.th@P51-DebianKDE:~/Downloads$

4.8. Beyond Compare (if no other diff tool)

5. Setup Windows PC Example

Setting up a PC is for Linux mostly straightforward but Windows PCs are more problematic. The steps shown here are just one example.

5.1. Choose the right Windows compiler

Three different compiler roles occur in this repository. A higher GCC version number does not make one role a replacement for another:

Role Command or target Used for Recommended source
ARM bare-metal GCC cross-toolchain arm-none-eabi-gcc; target arm-none-eabi Firmware and scripts/_210_gcc_example_builds_all_workflows.sh Official Arm GNU Toolchain installation guide; choose a Windows package ending in arm-none-eabi
Windows host GCC gcc; target such as x86_64-w64-mingw32 or i686-w64-mingw32 CGO and native Windows C tests Optional MinGW-w64 distribution, for example WinLibs
Clang frontend clang; use --target=arm-none-eabi for firmware Optional ARM firmware builds and, when correctly configured, native host tests Official LLVM releases

WinLibs is a third-party distribution of upstream GCC and MinGW-w64 for Windows. Its GCC 16.1 packages are Windows host compilers, not arm-none-eabi-gcc. They cannot build the ARM examples or replace the Arm GNU Toolchain. WinLibs is useful only when a Windows host GCC is needed. Normally choose its Win64 x86_64 build for a 64-bit Go installation; a Win32 package reports i686-w64-mingw32. Use go env GOARCH to check the Go architecture; amd64 normally needs the Win64 host compiler.

Do not infer the compiler target from the download page, folder name, or --version alone. Check it explicitly:

arm-none-eabi-gcc -dumpmachine # must print: arm-none-eabi
gcc -dumpmachine               # host GCC normally prints: x86_64-w64-mingw32
clang --target=arm-none-eabi -dumpmachine

For example, a C:\bin\mingw32\bin\gcc.exe reporting GCC 16.1 and i686-w64-mingw32 is an optional 32-bit Windows host compiler. The executable needed by Step 12 is named arm-none-eabi-gcc.exe and comes from a separate Arm GNU Toolchain installation.

At the time of writing, GCC 16.1 is the newest upstream GCC major release and WinLibs offers it as its current Windows host build. The current official Arm GNU Toolchain version can differ because Arm publishes an integrated cross-toolchain on its own release schedule. Use the version identified as tested in Recommended complete Arm GNU Toolchain for the ARM examples; do not select a host GCC merely because its GCC number is higher.

5.2. Setup Trice

OR

5.3. Setup ARM Environment Example

5.3.1. Install make

ms@PaulPCWin11 MINGW64 ~/repos/trice/examples (devel)
$ winget install ezwinports.make
The `msstore` source requires that you view the following agreements before using.
Terms of Transaction: https://aka.ms/microsoft-store-terms-of-transaction
The source requires the current machine's 2-letter geographic region to be sent to the backend service to function properly (ex. "US").

Do you agree to all the source agreements terms?
[Y] Yes  [N] No: Y
Found ezwinports: make [ezwinports.make] Version 4.4.1
This application is licensed to you by its owner.
Microsoft is not responsible for, nor does it grant any licenses to, third-party packages.
Downloading https://downloads.sourceforge.net/project/ezwinports/make-4.4.1-without-guile-w32-bin.zip
  ██████████████████████████████   383 KB /  383 KB
Successfully verified installer hash
Extracting archive...
Successfully extracted archive
Starting package install...
Path environment variable modified; restart your shell to use the new value.
Command line alias added: "make"
Successfully installed

ms@PaulPCWin11 MINGW64 ~/repos/trice/examples (devel)

$ make --version
GNU Make 4.4.1
Built for Windows32
Copyright (C) 1988-2023 Free Software Foundation, Inc.
License GPLv3+: GNU GPL version 3 or later <https://gnu.org/licenses/gpl.html>
This is free software: you are free to change and redistribute it.
There is NO WARRANTY, to the extent permitted by law.

5.3.2. Install ARM GCC

5.3.3. macOS

5.3.4. Install ARM Clang (optional)

With the ARM Clang you get quicker compilation runs and smaller images.

On Windows, a globally visible clang is also detected by some Go regression tests as a host C compiler. LLVM does not include a Windows C runtime or its standard headers. Therefore, a host Clang installation must use one of these runtime setups:

Check the host installation before running the Go test suite:

printf '#include <string.h>\n' | clang -std=c99 -fsyntax-only -x c -

The command must finish without diagnostics. An error such as fatal error: 'string.h' file not found means that the compiler executable exists, but its matching host C runtime headers are not configured. Do not add ARM include directories globally to work around that host error.

5.3.5. Check Project Makefile (if it already exists)

$ make version
/c/bin/ArmGNUToolchain/bin/arm-none-eabi-gcc
arm-none-eabi-gcc (Arm GNU Toolchain 12.3.Rel1 (Build arm-12.35)) 12.3.1 20230626
Copyright (C) 2022 Free Software Foundation, Inc.
This is free software; see the source for copying conditions.  There is NO
warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

/c/bin/ArmClang/bin/clang --target=arm-none-eabi
clang version 17.0.0
Target: arm-none-unknown-eabi
Thread model: posix
InstalledDir: C:\bin\ArmClang\bin

The paths and versions must match the installations selected in the current terminal.

5.4. Inventory, select, and remove compiler versions

An extracted ZIP toolchain is usually not registered as an installed Windows application. Therefore no single Windows dialog lists every compiler. Inspect both command resolution and likely installation directories before changing anything.

In PowerShell, list every matching executable visible through Path:

Get-Command arm-none-eabi-gcc,gcc,clang -All -ErrorAction SilentlyContinue |
    Format-Table Name,Source
where.exe arm-none-eabi-gcc
where.exe gcc
where.exe clang

arm-none-eabi-gcc -dumpmachine
gcc -dumpmachine
clang --version

[Environment]::GetEnvironmentVariable('Path', 'User') -split ';'
[Environment]::GetEnvironmentVariable('Path', 'Machine') -split ';'
Get-ChildItem C:\bin -Directory

In Git Bash, use:

type -a arm-none-eabi-gcc
type -a gcc
type -a clang
arm-none-eabi-gcc -dumpmachine
gcc -dumpmachine
clang --version
printf '%s\n' "$PATH" | tr : '\n'

where.exe and type -a show all visible duplicates in search order. The first entry is executed. winget list and Windows Installed apps provide an additional list of registered installers, but they do not include manually extracted archives.

Install compiler versions side by side and test a selection in a fresh terminal before modifying the persistent user Path. For example, select Arm GNU Toolchain 15.3.Rel1 for only the current PowerShell session:

$savedPath = $env:Path
$env:Path = 'C:\bin\ArmGNUToolchain-15.3.Rel1\bin;' + $savedPath

where.exe arm-none-eabi-gcc
arm-none-eabi-gcc -dumpmachine
arm-none-eabi-gcc --version

# Restore the session when the test is complete.
$env:Path = $savedPath

The equivalent Git Bash commands are:

saved_path=$PATH
export PATH="/c/bin/ArmGNUToolchain-15.3.Rel1/bin:$saved_path"
hash -r

type -a arm-none-eabi-gcc
arm-none-eabi-gcc -dumpmachine
arm-none-eabi-gcc --version

# Restore the session when the test is complete.
export PATH="$saved_path"
hash -r

Use the same pattern for Clang or host GCC by prepending that version’s bin directory. Start from a fresh terminal for each comparison so that a path from the previous test cannot leak into the next one. Shell command caches are cleared by hash -r in Git Bash. Do not put several directories containing the same compiler command permanently in Path; their order otherwise becomes an implicit and easily missed version switch.

After selecting ARM GCC, test the known serial baseline and then the desired parallelism from the repository root:

MAKE_JOBS=-j1 ./scripts/_210_gcc_example_builds_all_workflows.sh
MAKE_JOBS=-j4 ./scripts/_210_gcc_example_builds_all_workflows.sh

Record type -a arm-none-eabi-gcc, both tool versions, MAKE_JOBS, and the temp/log/_5*_test_gcc_*.log files with every comparison. Windows exit code -1073741819 is 0xC0000005 (STATUS_ACCESS_VIOLATION): a compiler process crashed; it is not a normal C diagnostic. If -j1 succeeds but a bounded parallel build crashes, preserve the evidence and compare another complete official Arm GNU Toolchain before concluding that source code or job count is the root cause.

Remove an old compiler only after all of the following are true:

  1. A new terminal resolves every command to the intended replacement.
  2. The relevant ARM, CGO, and Clang tests pass with that replacement.
  3. Neither the user nor machine Path, a Makefile, clang.cfg, IDE setting, or debugger configuration refers to the old directory.
  4. The old package name, version, source URL, and checksum have been recorded so that the setup can be reproduced.

Use Installed apps or the package manager that installed a registered toolchain. For a manually extracted archive, first remove its Path entry, open a new terminal, repeat the inventory commands, and only then delete that one version directory. Keep at least one complete arm-none-eabi toolchain; ARM Clang needs its target headers and libraries. Keep one Windows host compiler when CGO tests require it. A 32-bit i686-w64-mingw32 WinLibs installation is normally unnecessary when Go and the required host builds are all 64-bit, but verify that no project depends on 32-bit output before removing it.

5.5. Setup STM32

5.5.1. Generate Base Project

5.5.2. Update NUCLEO Onboard Debugger (other ST evaluation boards too)

(https://www.st.com/en/development-tools/stsw-link007.html)

This step is recommended before re-flashing with the J-Link onboard debugger software.

(https://www.segger.com/products/debug-probes/j-link/models/other-j-links/st-link-on-board/)

Using the J-Link onboard debugger software allows parallel debugging and RTT usage.

Unfortunately this is not possible with v3 onboard debugger hardware! But you can use a J-Link hardware instead. Also it is possible to use a v2 onboard debugger from a different evaluation board or a “Bluepill” Development Board Module with ARM Cortex M3 processor”.

5.7. Setup VS-Code

6. Makefile with Clang too

7. Download Locations

7.1. Clang

https://releases.llvm.org/download.html -> https://github.com/llvm/llvm-project/releases/ (example)

The LLVM download supplies Clang and its builtin headers. It does not supply the target C runtime:

7.2. GCC

These downloads are not interchangeable. Confirm the target with -dumpmachine after selecting the compiler.

8. Install Locations

Do not use locations containing spaces, like C:\Program Files. Take C:\bin for example. This avoids trouble caused by spaces inside path names.

Keep roles and versions distinguishable. For example, use C:\bin\ArmGNUToolchain-15.3.Rel1 for arm-none-eabi-gcc, C:\bin\LLVM-22.1.6 for Clang, and C:\bin\WinLibs-GCC-16.1-x86_64 for a MinGW-w64 host compiler. A compiler executable in Path is not sufficient by itself; its matching standard headers, libraries, support programs, and DLLs must also remain in the same installation.

9. Environment Variables

Prepend only the currently selected compiler’s bin directory to Path. Prefer a temporary terminal selection while comparing versions. If the selection is made persistent, place it before other directories containing the same command and verify it from a new terminal with where.exe or type -a. See Inventory, select, and remove compiler versions.

The debugger path can be added independently, for example C:\Program Files\SEGGER\JLink or a versioned JLink_V... directory.

10. Build command

11. Run & Debug

12. Logging

trice l -p JLINK -args="-Device STM32G0B1RE -if SWD -Speed 4000 -RTTChannel 0" -pf none -ts ms -d16 (example)

Trice output during a debugging session

Select the preview to open the full animation.

13. Setting up a new project

(back to top)

14. Third-party packages and retained versions

The third_party directory stores optional transport tools, terminal software, vendor documentation, and reference source snapshots. It is not a list of mandatory installations. The example projects contain their required target sources, including configured RTT sources where used; building them does not require extracting these ZIPs. Select additional host tools only for the transport you intend to use. The packages below are stored versions, not a statement that they are current or compatible with every host.

Stored archive Contents and retained role
cobs-c-0.5.0.zip and cobs-c-version_1.0.zip Craig McQueen’s COBS/COBS-R source snapshots, both with LICENSE.txt and README.rst. They are comparison/reference sources, not the COBS files compiled from src. No active build extracts either version; the reason a manual user may still need both is unconfirmed, so both are retained.
cJSON-1.7.15.zip cJSON source snapshot with its MIT LICENSE and README. No active Trice build or structured-log output depends on this ZIP. Its original/manual use is unconfirmed; retaining it does not introduce a JSON dependency.
SEGGER_RTT_V812a.zip Older RTT target sources, configuration, examples, README, and LICENSE.md, retained as a historical source reference. The current files in src come from the official SEGGER GitHub repository; see Trice over RTT. Normal builds do not extract this archive.
JLinkRTTLogger.zip Windows JLinkRTTLogger.exe and JLinkARM.dll, retained for the optional J-Link transport. No version manifest or license file is bundled in this ZIP; its exact version and redistribution provenance are unconfirmed.
STRTTLogger.zip Windows stRttLogger.exe and libusb-1.0.dll, retained for optional ST-Link RTT logging. The earlier repository notes identify phryniszak/strtt and gostlink as related sources. The ZIP has no license or version manifest; that relationship does not verify the exact binary build.
STLinkReflash_190812.zip Windows STLinkReflash.exe and JLinkARM.dll for the documented onboard ST-Link/J-Link conversion. Retained as a dated vendor utility; the ZIP has no license or version manifest.
en.stsw-link007_V2-37-26.zip ST-Link firmware upgrade package with Windows and Java/native platform tools. Its README lists V2J37S7/V2J37M26 and STLINK-V3 V3J7M2 firmware. Retained for the documented upgrade/conversion setup.
stsw-link007.zip Earlier upgrade package whose README lists V2J24S4/V2J24M11 firmware and older host prerequisites. It is a distinct legacy snapshot, not a duplicate of the V2-37-26 package. The continuing need for that old version is unconfirmed, so it is retained without recommending it as the default.
en.stsw-link009_v2.0.2.zip Stored Windows USB driver package. Its README identifies Windows 7/8/10 and 32/64-bit support. It is an optional driver reference, not a verified claim of support for newer Windows versions.
Alacritty.zip A single Windows Alacritty.exe. Earlier repository notes identify it as the renamed Alacritty-v0.7.2-portable.exe from Alacritty. No version/license manifest is bundled; the exact binary provenance is unconfirmed. It is an optional ANSI-capable terminal, not a Trice build dependency.

For automatic RTT capture, the host tool resolves JLinkRTTLogger or stRttLogger through PATH; it does not automatically unpack or locate these ZIPs under third_party. For example, on Windows, extract a selected logger and its accompanying DLL into the same directory and add that directory to PATH. Installing the appropriate vendor package is another way to provide the logger. See Trice over RTT for the capture workflow and onboard probe conversion for the device-specific setup. No probe firmware is changed by a Trice build.

The stored J-Link manual and online-manual snapshot are offline vendor references. Their chapter numbers and platform details belong to those copies. The J-Link download page, RTT page, and ST website provide the original vendor context.

Preserve the copyright and license notices supplied with source snapshots; the Trice MIT license does not replace third-party terms. Replacing RTT sources in src or an example is a separate, reviewed vendor update, including its configuration and target validation. An archive’s age or lack of an active build reference alone does not authorize its removal. No archive contents, vendor sources, or Drivers/Middlewares directories are changed by this inventory.
